1 To 9 Ports 3 in 1 5V 3 Pin ARGB Controller Cooling Fan Hub with Remote 4 Pin PWM Magnetic Suction Hub SATA Power Supply PWM Magnetic Fan Hub Splitter for 5V Addressable ARGB Computer PC Case Fan
Feature:
1. Multi-Interface Design for Enhanced Expansion: The 5V 3 Pin ARGB controller cooling fan hub boasts a comprehensive design with 9*3Pin ARGB interfaces and 9*4Pin PWM interfaces, complete with motherboard connection cables and PWM temperature control signal lines. This setup allows for the installation of up to 9 ARGB fans simultaneously, offering a convenient and efficient way to upgrade your system’s cooling capacity and aesthetic appeal.
2. Intelligent PWM Temperature Control for Efficiency: Featuring smart PWM temperature control, the 4 Pin PWM magnetic suction hub optimizes energy consumption and minimizes noise. With PWM mode enabled on the motherboard, fan speeds automatically adjust based on CPU temperature-speeding up for cooling when temperatures rise and slowing down to conserve energy and reduce noise when cooling is less critical. This smart intervention supports CPU FAN temperature control, ensuring optimal system performance.

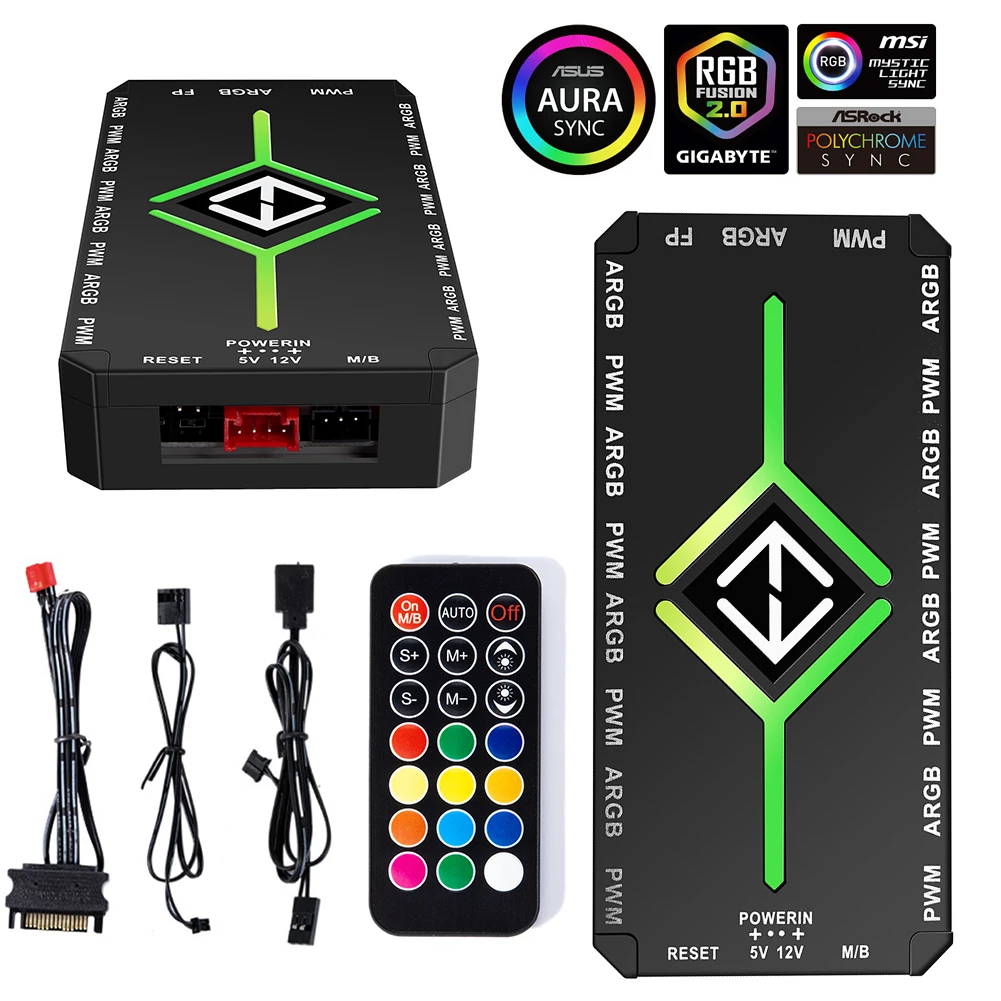

3. ARGB Synchronization for Ultimate Customization: The PWM fan hub supports synchronization with major motherboard brands like compatible with ASUS, MSI, Gigabyte, and ASRock through 5V 3PIN ARGB connections. This allows for seamless integration of cooler lighting with other ARGB products, enabling customizable lighting effects such as flowing lights, mosaics, and display patterns through software control, enhancing your gaming rig’s aesthetics.

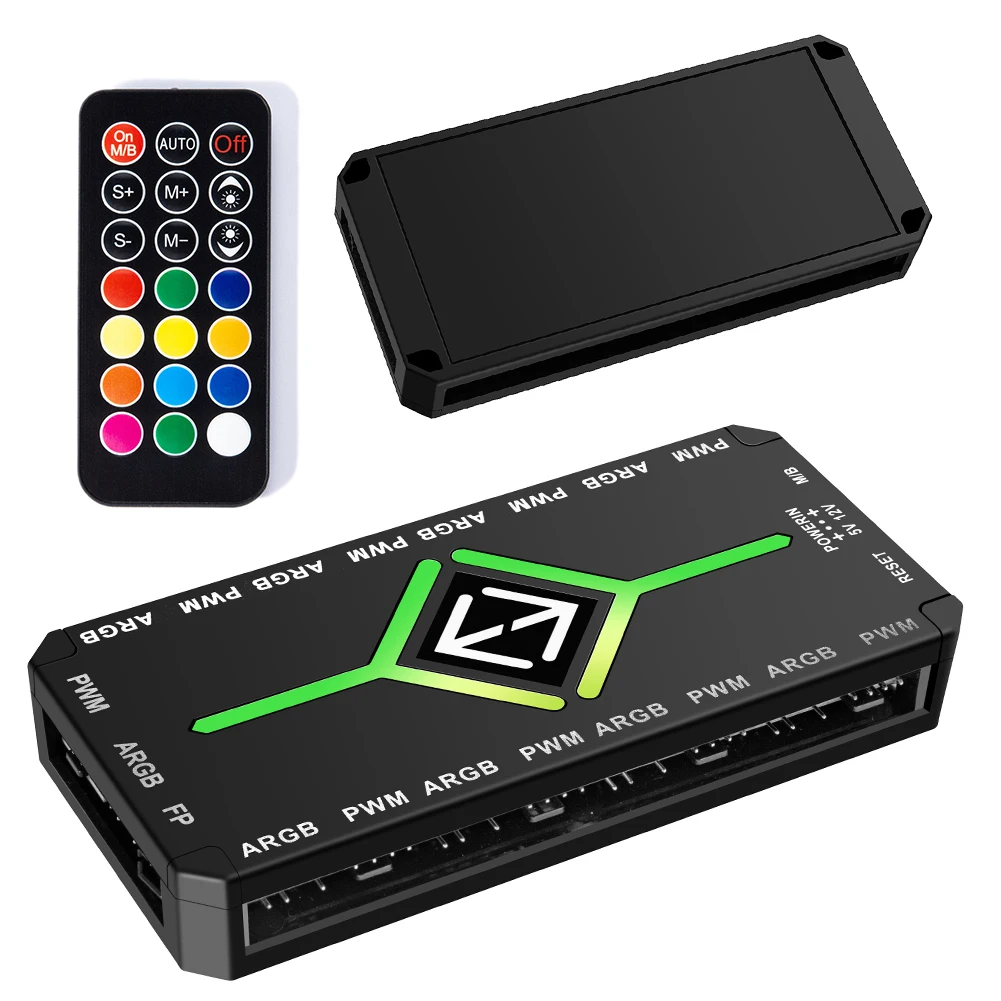

4. Wireless Remote Control with Extensive Lighting Effects: The PWM magnetic fan hub splitter comes with a wireless remote control, offering the flexibility to switch between motherboard and remote control modes. With over 360 built-in lighting effects, users can easily turn lights on/off, adjust fan speed, and modify brightness. This feature ensures a wide array of customization options, even for motherboards without 5V sync support, adding a fun and personalized touch to your setup.
5. Stable Power Supply with Magnetic Installation: Equipped with a SATA power connection, the PWM ARGB fan hub ensures a stable and sufficient power supply directly from a 12V input, relieving the motherboard from the power burden even under full load. The hub’s magnetic base allows for easy and tool-free installation inside your case or on any metal surface, saving space and simplifying cable management. The high-quality double-layered black PCB and durable casing guarantee reliability and a clean, organized look inside your PC.

Specification:
Certification: CE
Origin: Mainland China
Type: PWM Controller/HUB

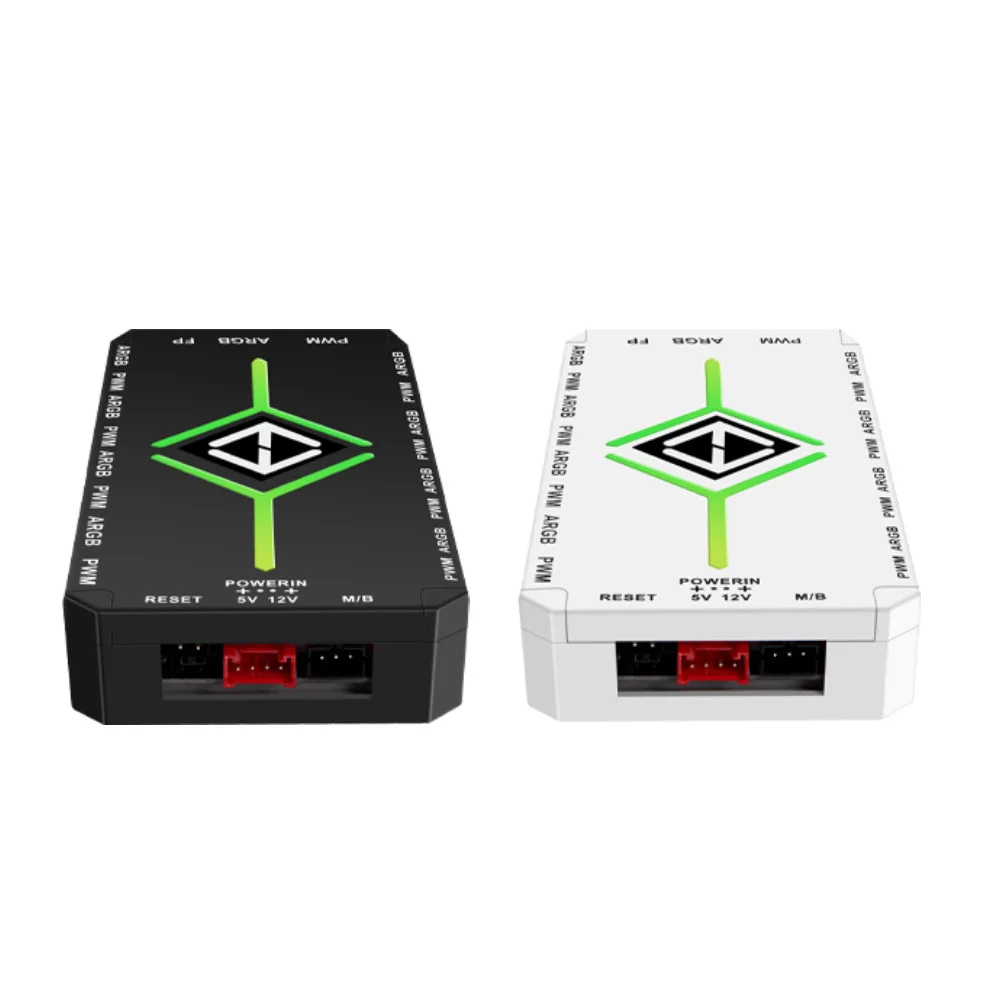

Color: black, white (optional)
Material: ABS+electronic components
Rated voltage: 12V (fan motor) + 5V (lamp beads)
Current: (not exceeding) 10A
Power: (not exceeding) 60W
Number of interfaces: 9 PWM interfaces (4PIN), 9 ARGB interfaces (3PIN)
Control mode: PWM intelligent temperature control, motherboard 5V ARGB divine light synchronization, wireless remote control control, motherboard restart button to switch lights

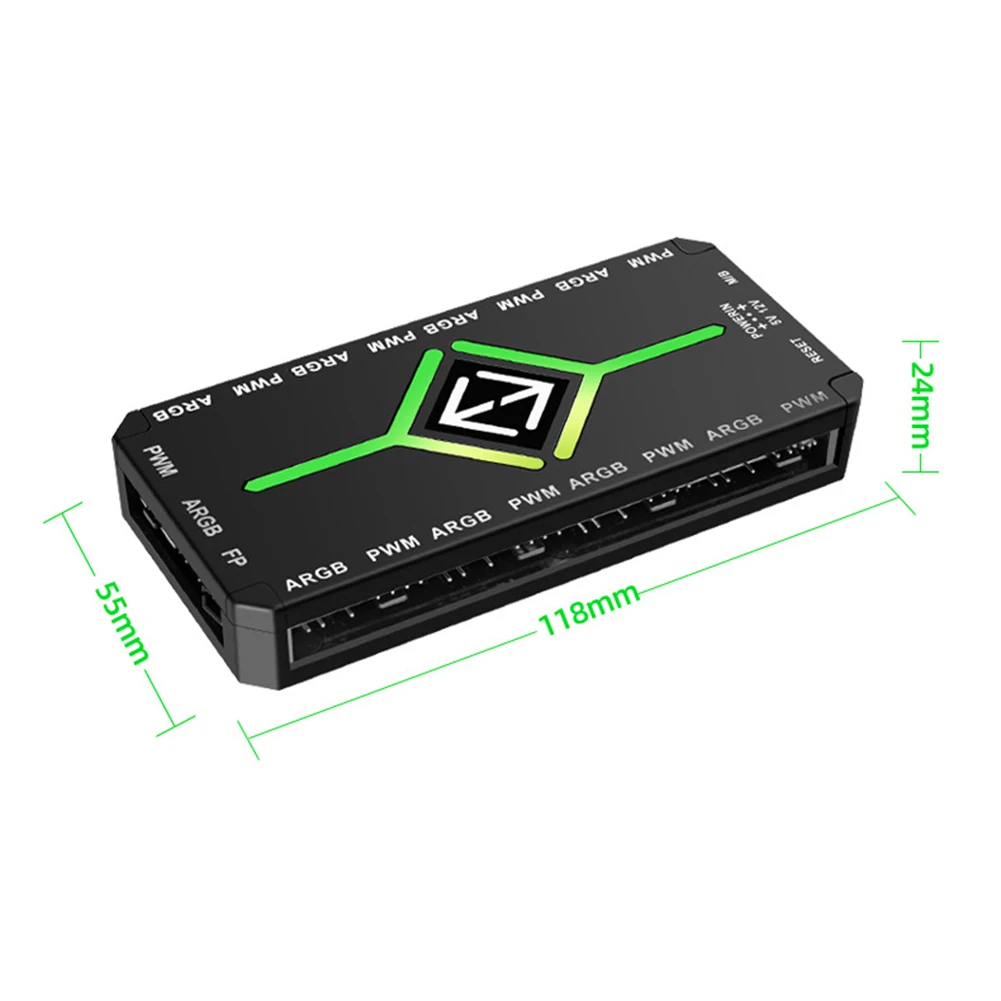

Size: 118.00×55.00×24.00mm/4.65×2.17×0.94inch
Total weight: about 0.12kg

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

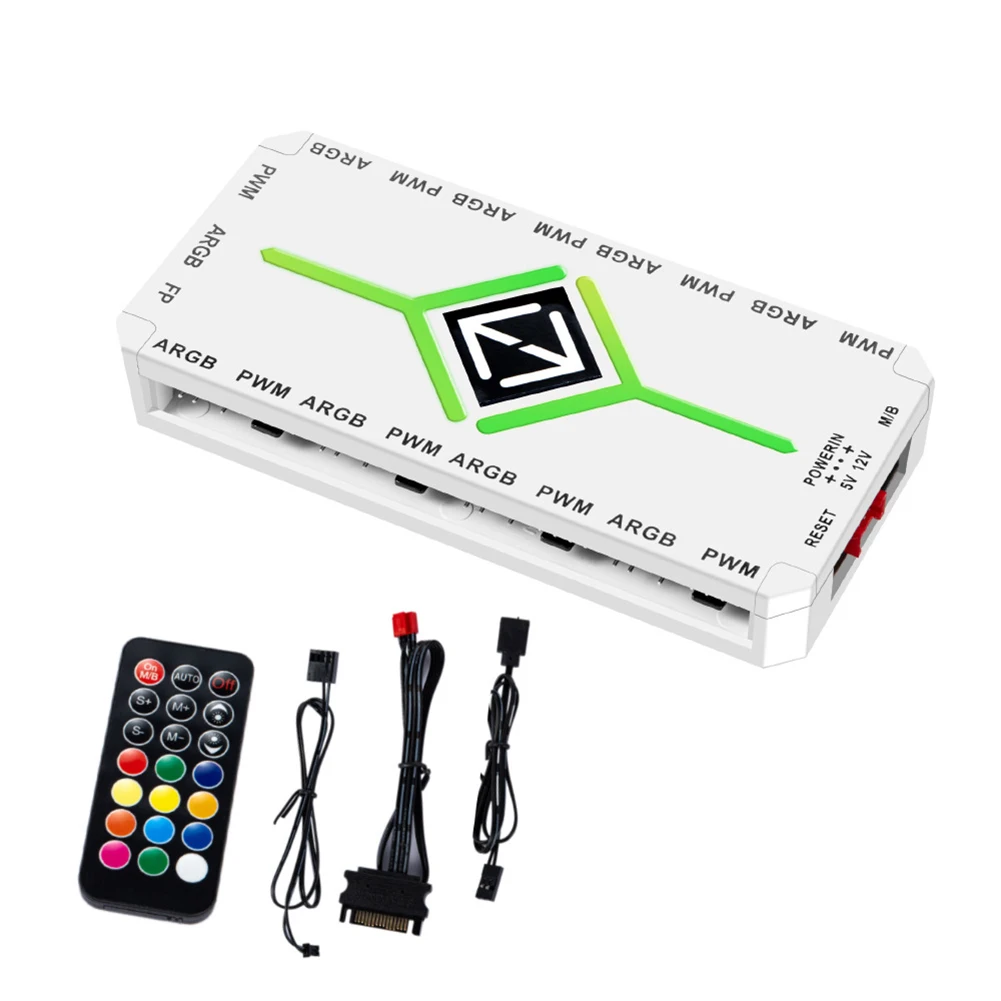

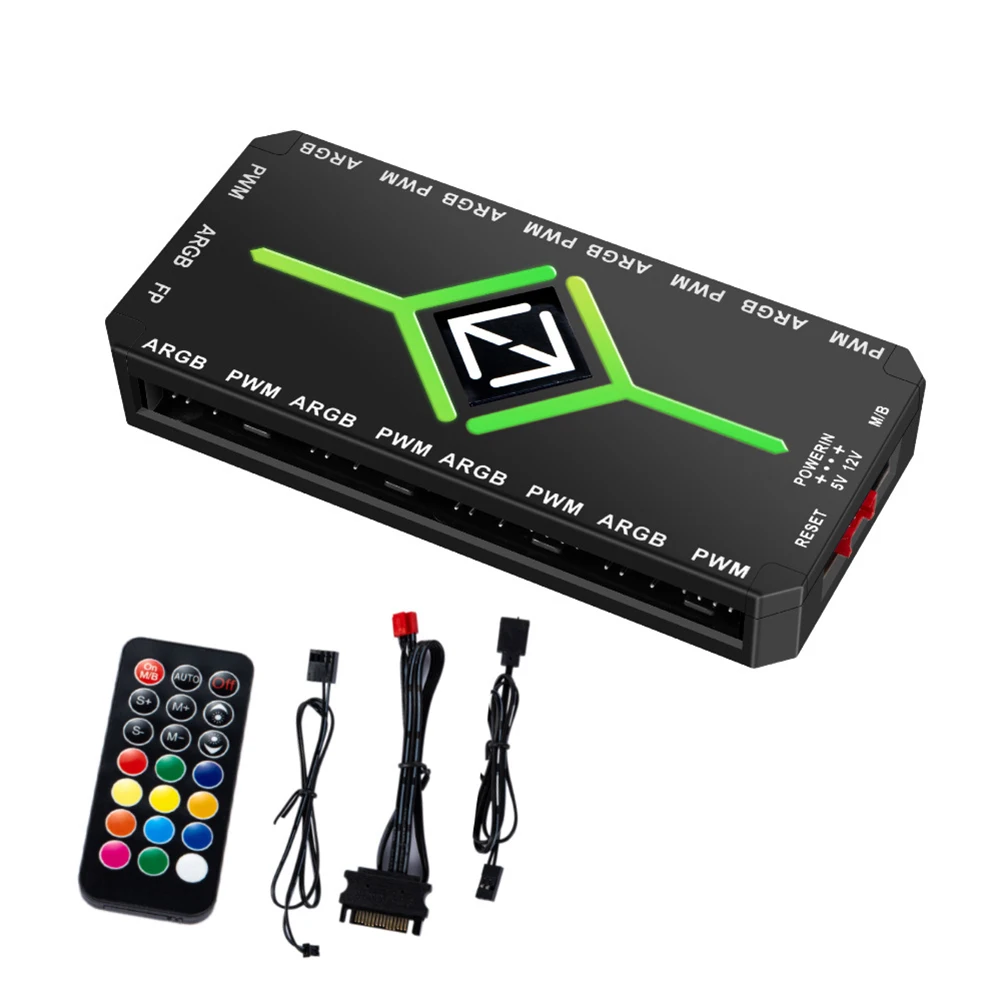

1 X Controller
1 X Remote Control
1 X SATA Power Cable
1 X Motherboard Sync Cable
1 X PWM Temperature Control Signal Line
