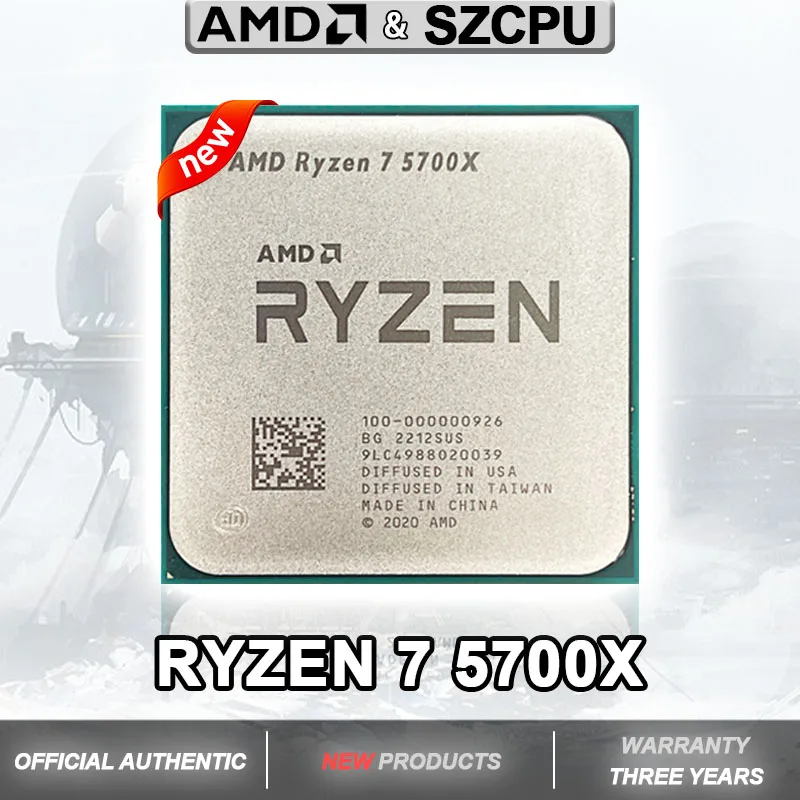

AMD R7 5700X Ryzen 7 5700X New 3.4 GHz Eight-Core 16-Thread CPU 7NM L3=32M 100-000000926 Socket AM4
RM 490
152 in stock
Description
SPECIFICATIONS
AMD Model: AMD R7 5700X
Application: Desktop
Brand Name: AMD
Chip Process: 7nanometers
Cooling system: No
Default TDP / TDP: 65
GPU-built: No
Hign-concerned Chemical: None
Item Condition: New
L2 Cache Capacity: 4
L3 Cache Capacity: 32
MAX BOOST CLOCK: 4.6
Number OF Therads: 16
Number of Cores: Eight Core
Origin: MY(Origin)
PCIe VERSION: PCIe 4.0
Package: No
Processor Type: AMD Ryzen 5000 Series-R7
Socket Type: AM4
Support Chipset Models: AMD B550
Support Memory Channels: 2
Support Memory Type: DDR4
Type: Octa Core
Unlocked: No
Usage Scenario: others
Warranty: One yeas warranty
General information
|
Type |
CPU / Micro |
|
Market segment |
Desktop |
|
Family |
AMD Ryzen 7
|
|
Model number |
5700X |
|
CPU part numbers |
|
|
Frequency |
3.4 GHz / 3400 MHz |
|
Maximum turbo frequency |
4.6 GHz / 4600 MHz
|
|
Package |
1331-pin lidded micro-PGA package |
|
Socket |
Socket AM4 |
|
Introduction date |
March 15, 2022 (announcement) |
|
Price at introduction |
$299 |
|
Architecture / Microarchitecture |
|
|
Microarchitecture |
Zen 3 |
|
cpu core |
Vermeer |
|
CPUID |
A20F12 |
|
Manufacturing |
TSMC 0.007 micron FinFET (CPU die) |
|
Die |
74mm2?(CPU die) |
|
Data width |
64 bit
|
|
The number of CPU cores |
8 |
|
The number of threads |
16
|
|
Floating Point Unit |
Integrated |
|
Level 1 cache size |
8 x 32 KB 8-way set associative instruction caches |
|
Level 2 cache size |
8 x 512 KB 8-way set associative unified caches |
|
Level 3 cache size |
32 MB 16-way set associative shared cache |
|
Physical memory |
128 GB |
|
Multiing |
Unicpu |
|
Extensions & Technologies |
|
|
Security Features |
EVP / Enhanced Virus Protection
|
|
Low power features |
Pure Power |
|
Integrated peripherals / components |
|
|
Integrated graphics |
None |
|
Memory controller |
Memory channels (total): 2
Supported memory: DDR4-3200 ECC supported: Yes |
|
Other peripherals |
PCI Express 4.0 interface (20 lanes) |
|
Supported interfaces |
|
|
Electrical / Thermal parameters |
|
|
Maximum operating temperature |
90?C |
|
Thermal Design Power |
65 Watt |
|
|
|
Additional information
| Default Title |
Default Title |
|---|
