Description

SPECIFICATIONS

Brand Name: BRENUC

CPU Processor: Core i9-11900KB Processor (24M Cache, up to 4.90 GHz)

Certification: CE,FCC

Display Port: 1 x HDMI 2.0b,2 X Thunderbolt 4

Graphics: Intel UHD Graphics

Graphics Card Type: Integrated Card

Hard Drive Capacity: 1TB

Hign-concerned Chemical: None

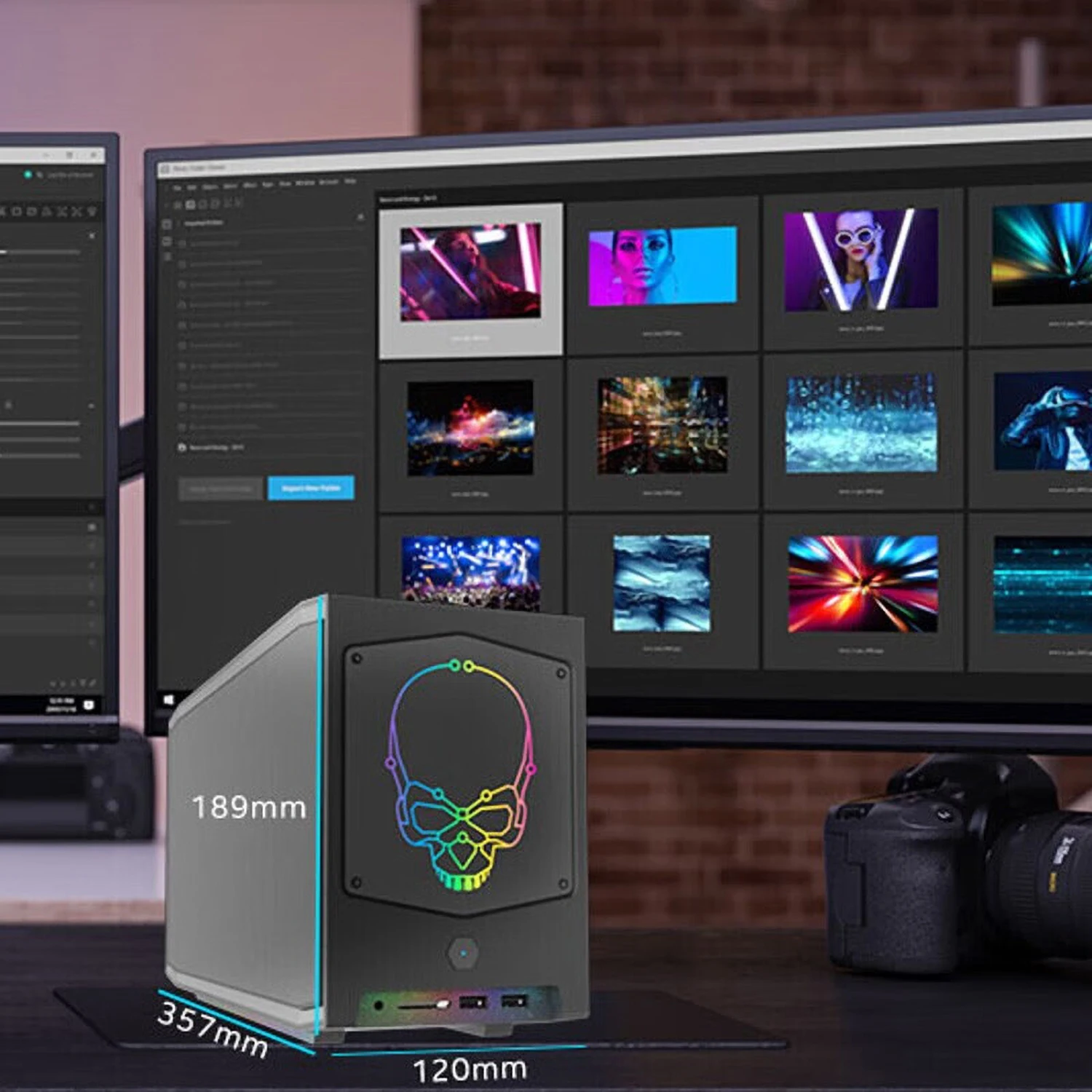

ITX Case Size: 357 x 189 x 120 mm (~8L)

Memory Capacity: 32GB

Memory Type: DDR4 SODIMM Support DDR4-3200GHz Up to 64GB

Model Number: NUC11BTMi9

Origin: Mainland China

Power adapter: 650W 80Plus

Processor: 8 Core 16 Threads 24M Cache

Processor Brand: Intel

Processor Main Frequency: 3.3-4.9 GHz

Processor Model: Core i9-11900KB

Storage: M.2 2280 NVMe SSD

Type: Mini Desktop,MINI PC

Use: Commercial

Windows System: Window 10/11

Set of options:

1?Barebone(Sealed Original Packaing)

2?Crucial DDR4 3200MHz 16GB(8×2)+Solidigm PCIe 4.0 512GB SSD+Pre-install windows 10/11

3?Crucial DDR4 3200MHz 32GB(16×2)+Solidigm PCIe 4.0 1TB SSD+Pre-install windows 10/11

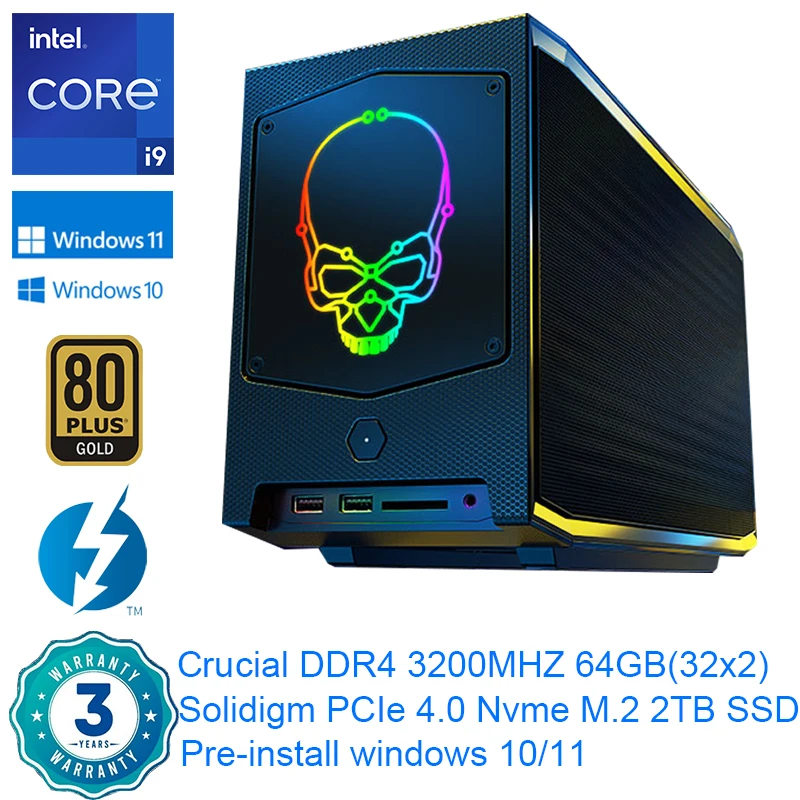

4?Crucial DDR4 3200MHz 32GB(32×2)+Solidigm PCIe 4.0 2TB SSD+Pre-install windows 10/11

5?Crucial DDR4 3200MHz 32GB(16×2)+Solidigm PCIe 4.0 1TB SSD+GTX 1660 6G PE Card+Pre-install windows 10/11

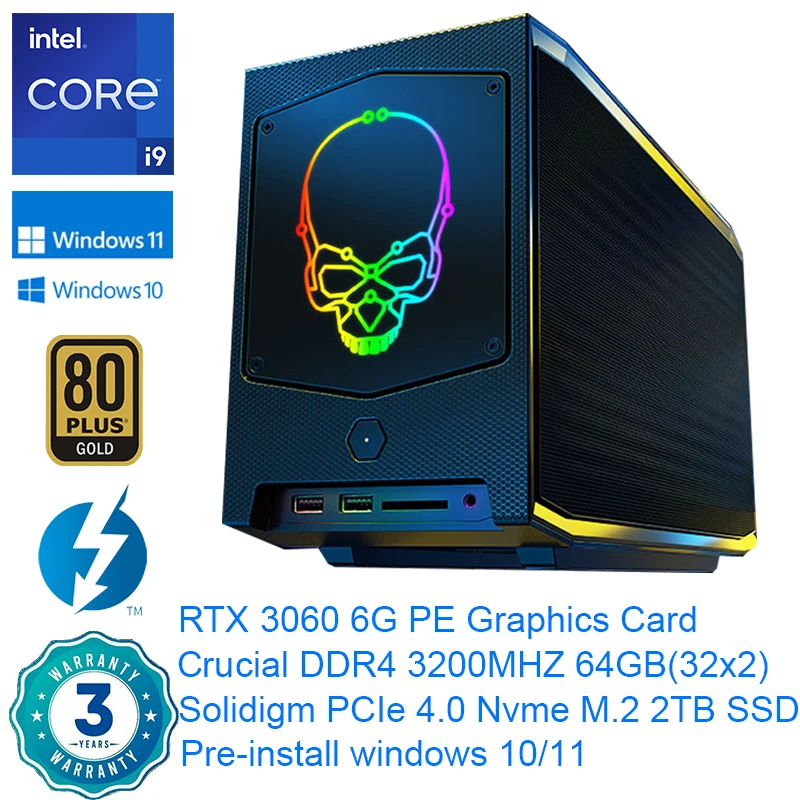

6?Crucial DDR4 3200MHz 32GB(32×2)+Solidigm PCIe 4.0 2TB SSD+RTX 3060 6G PE Card+Pre-install windows 10/11

7?Crucial DDR4 3200MHz 32GB(32×2)+Solidigm PCIe 4.0 2TB SSD+RTX 3080 8G PE Card+Pre-install windows 10/11

Product Collection?Intel NUC Kit with 11th Generation Intel Core Processors

Processor Included?Intel Core i9-11900KB Processor (24M Cache, up to 4.90 GHz)

Total Cores?8

Total Threads?16

Processor Base Frequency?3.30 GHz

Max Turbo Frequency?4.90 GHz

Memory & Storage

Max Memory Size (dependent on memory type)?64 GB

DDR4 3200MHz 1.2V SO-DIMM

DDR4 3200 MHz 1.35V SO-DIMM – XMP is required to enable 1.35V memory

Max of Memory Channels?2

Max Memory Bandwidth?51.2 GB/s

Max of DIMMs?2

Processor Graphics

Integrated Graphics ?Yes

Graphics Output?2x Thunderbolt 4, HDMI 2.0b

Displays Supported ?3

Expansion Options

PCI Express Configurations?

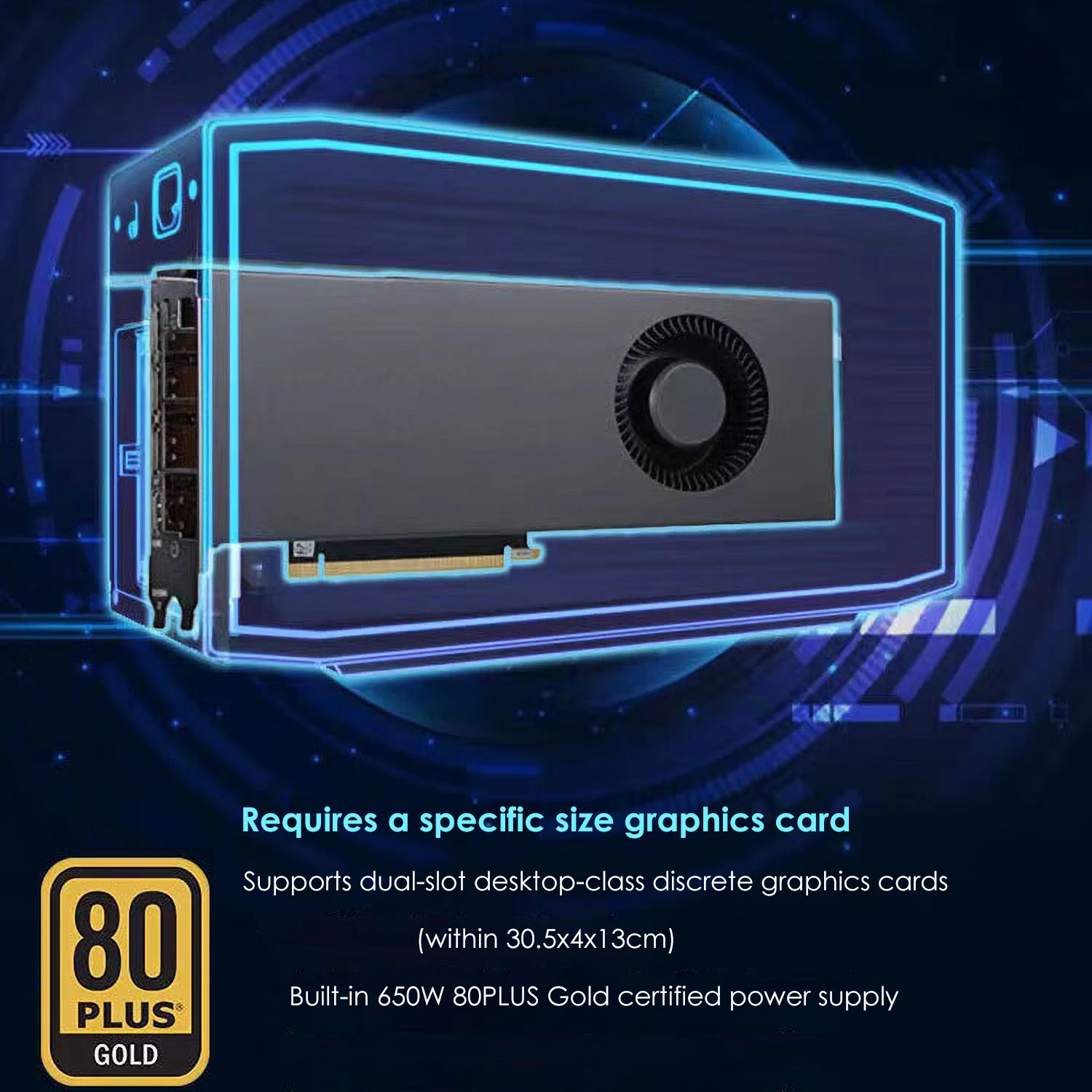

2x M.2 PCIe X4 Gen3 slots (PCH), 2x M.2 PCIe X4 Gen4 slots (CPU); Double-wide PCIe X16 Gen4 (CPU) slot, PCIe X4 Gen4 (CPU) slot, 12" max card length

Removable Memory Card Slot?SDXC with UHS-II support

M.2 Card Slot (wireless)?Intel Wi-Fi 6E AX210

M.2 Card Slot (storage)?2x via PCH + 2x via CPU (NVMe)

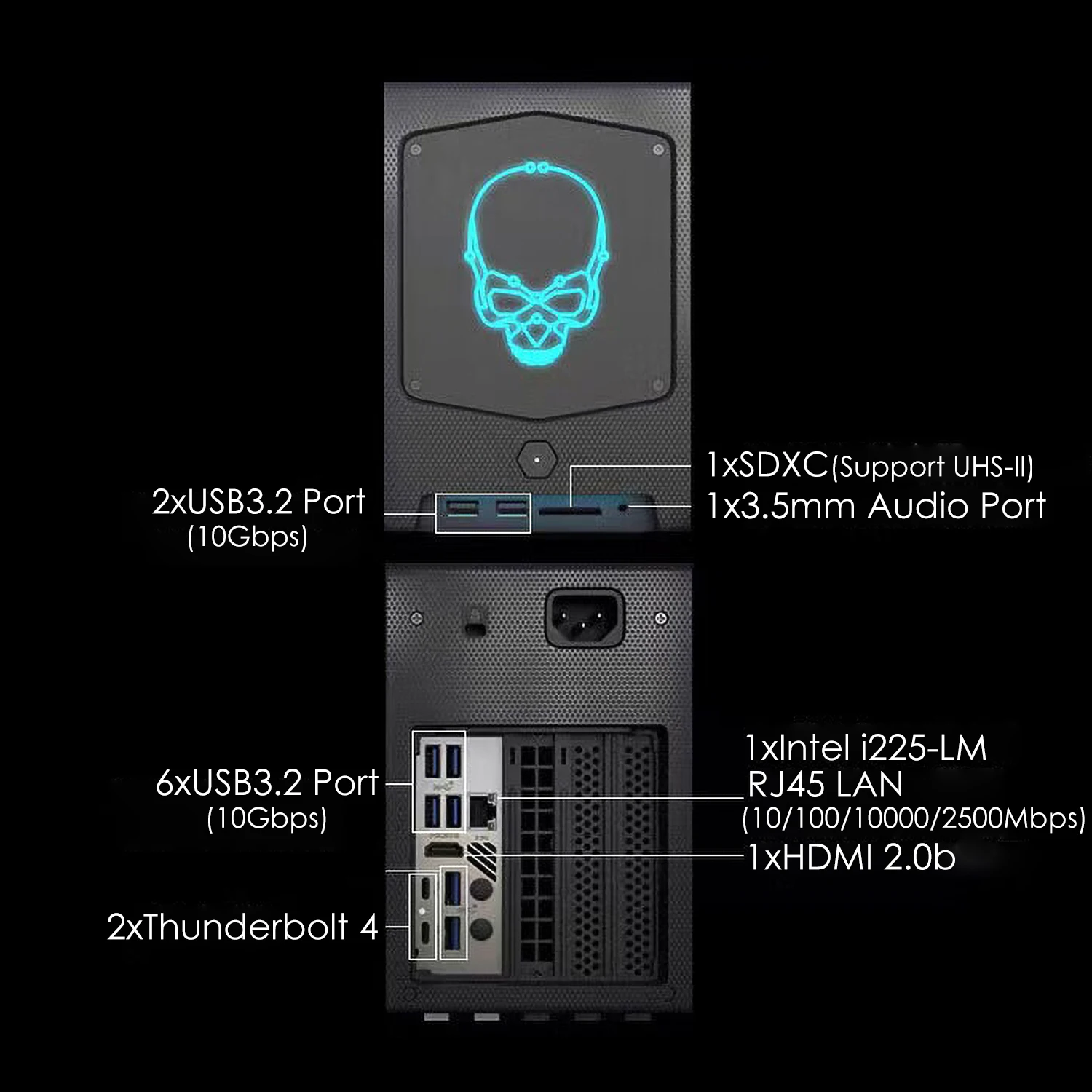

I/O Specifications

USB Configuration?

6x rear USB 3.1g2, 2x Thunderbolt 4 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 3.1 via internal headers, 2x USB 2.0 via internal headers

SATA Ports?2

RAID Configuration?2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)

Audio (back channel + front channel)?7.1 digital; L+R+mic (F)

Integrated LAN?Intel Ethernet Controller i225-LM

Integrated Wireless?Intel Wi-Fi 6E AX210(Gig+)

Integrated Bluetooth?Yes

Additional Headers?2x USB2.0, FRONT_PANEL

Thunderbolt Ports?2x Thunderbolt 4

Chassis Dimensions

357 x 189 x 120mm?8L?
