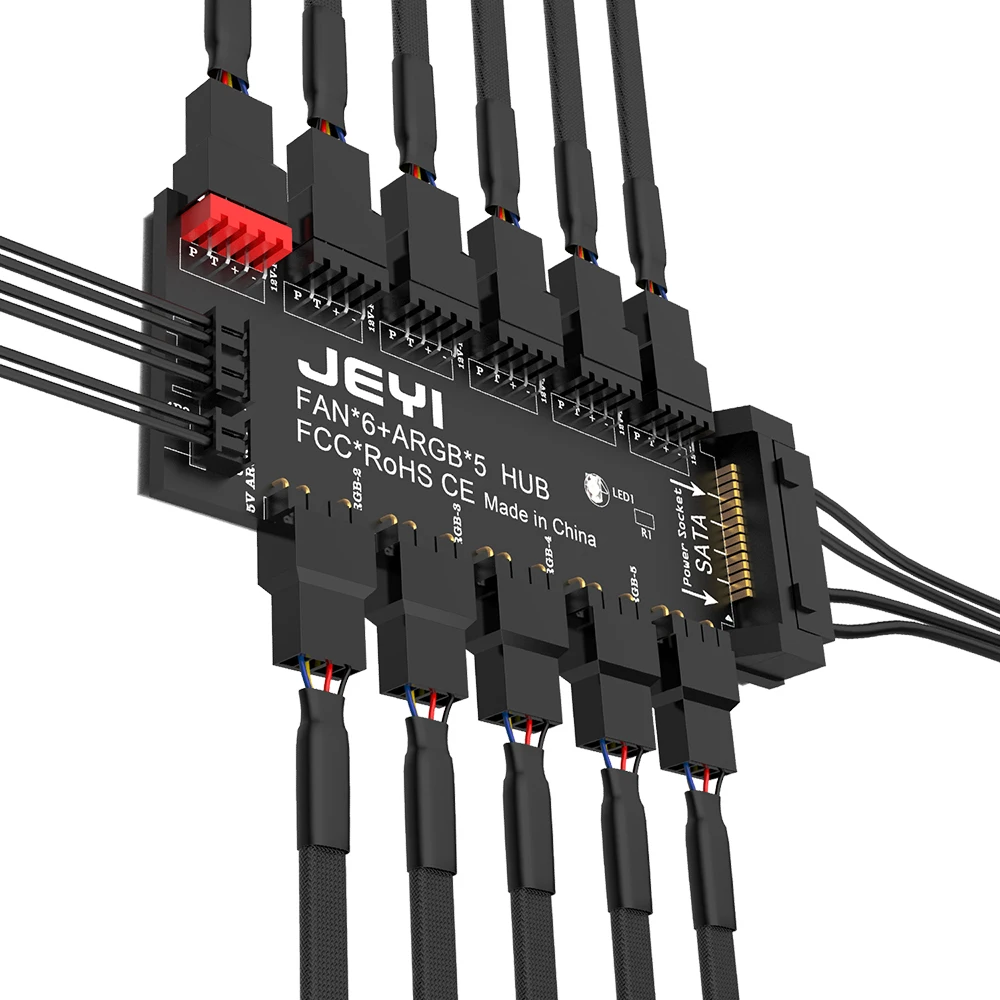

JEYI ARGB PWM 2-in-1 5 way hub support up to 5 sets of Addressable 5V RGB headers and 12V PWM headers. Add 1 CPU PWM signal fan.

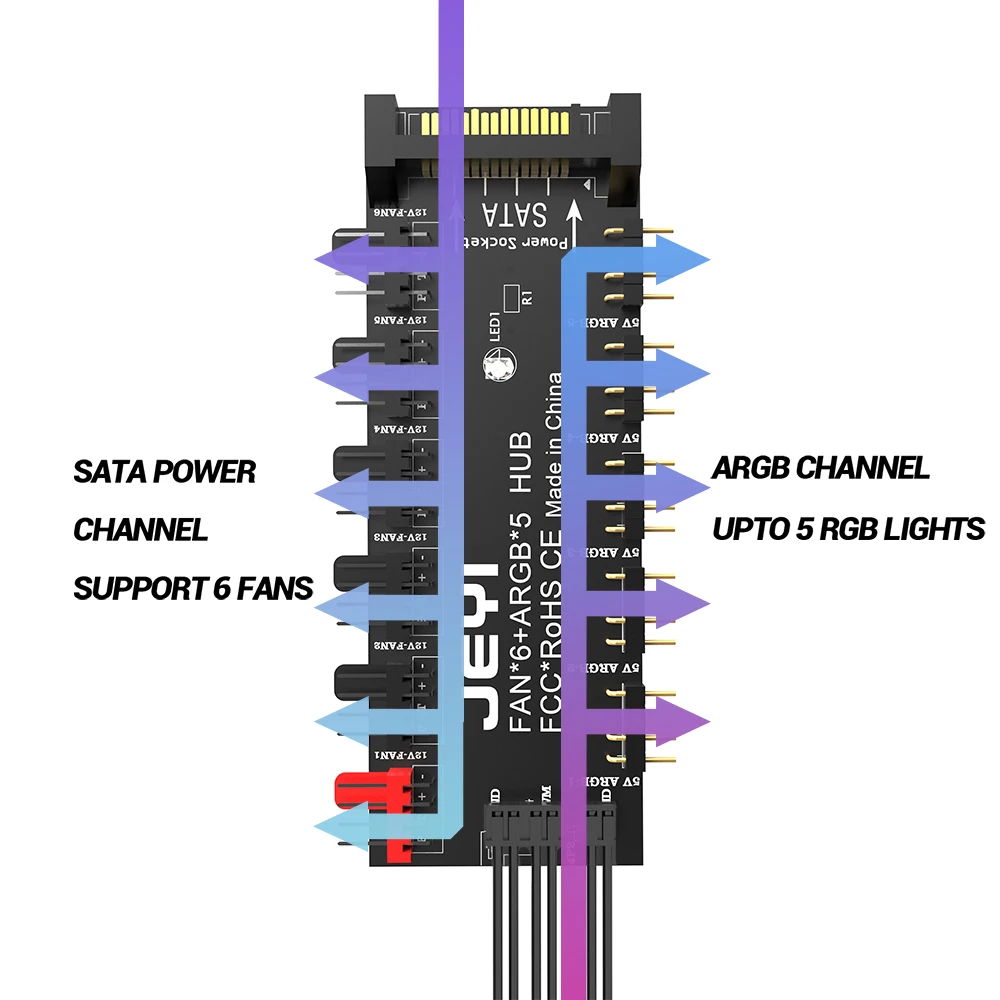

This CPU Cooling fan hub is powered by SATA 15PIN, which can supply power to the PWM fan and 5V ARGB lights. The motherboard has no power supply burden and can maintain a stable output even at full load.

This type of 5V ARGB header could connect to ARGB fans, light strips. Only compatible with 3pin 5V addressable RGB headers or controllers, don't connect to 12V RGB components, otherwise it might burn out.

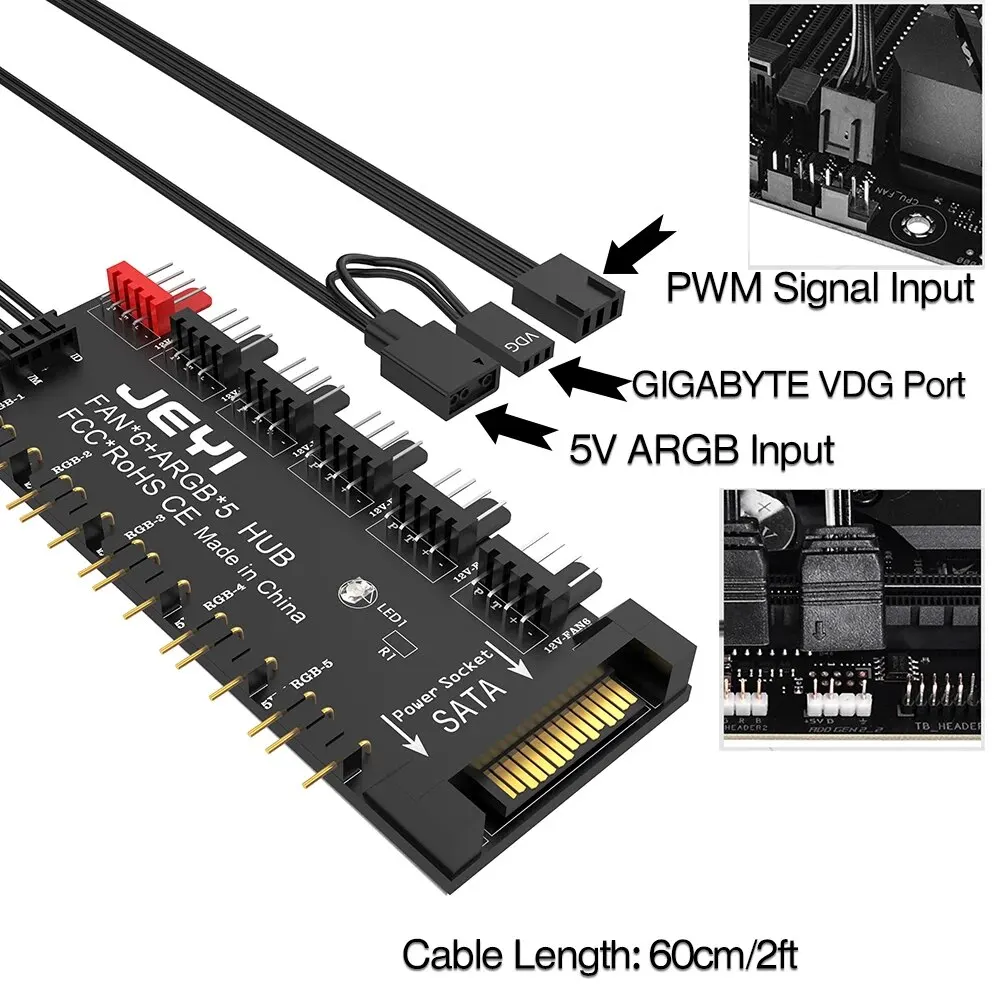

The PWM interface is connected to the CPU fan interface of the motherboard, and the red is the dedicated interface for the CPU fan (with speed measurement function). The black interface is a PWM conventional fan interface (no speed measurement signal, but does not affect the PWM function).

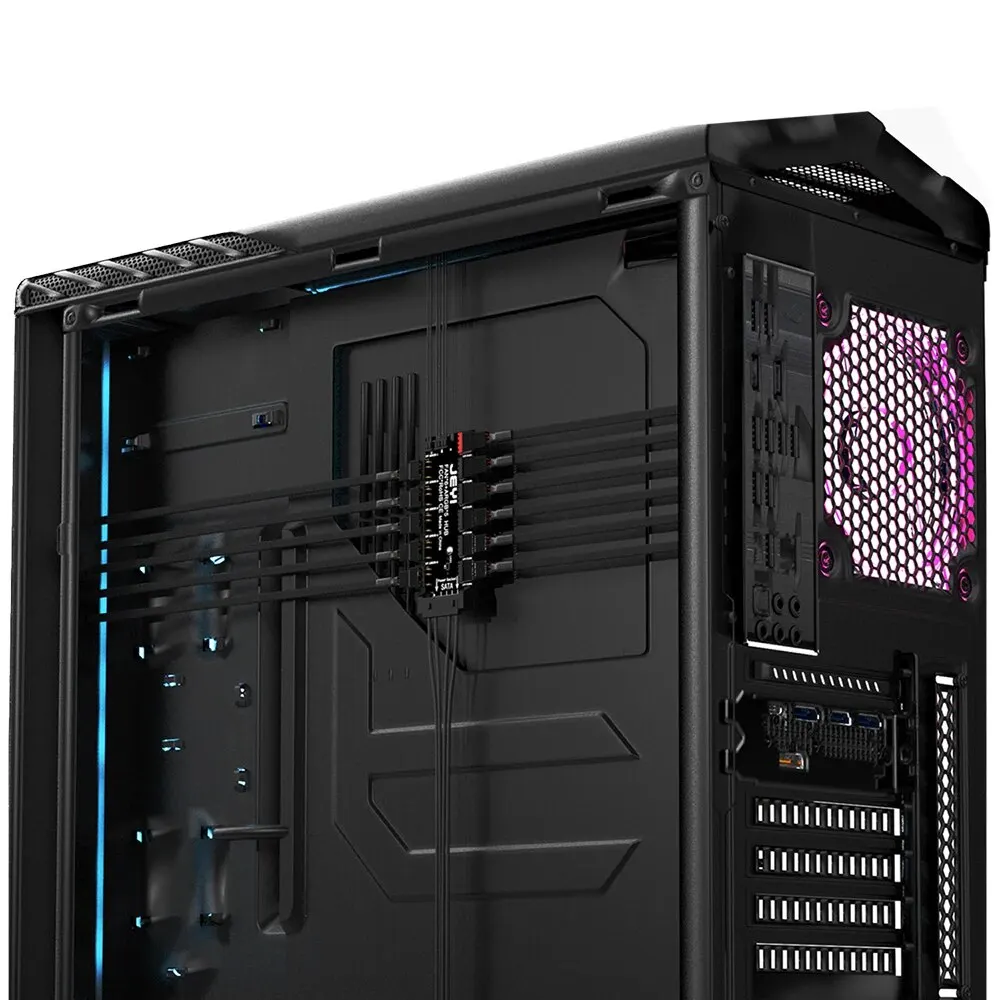

The back of the hub PCB board has adhesive foam, which is convenient for sticking in a flat place.

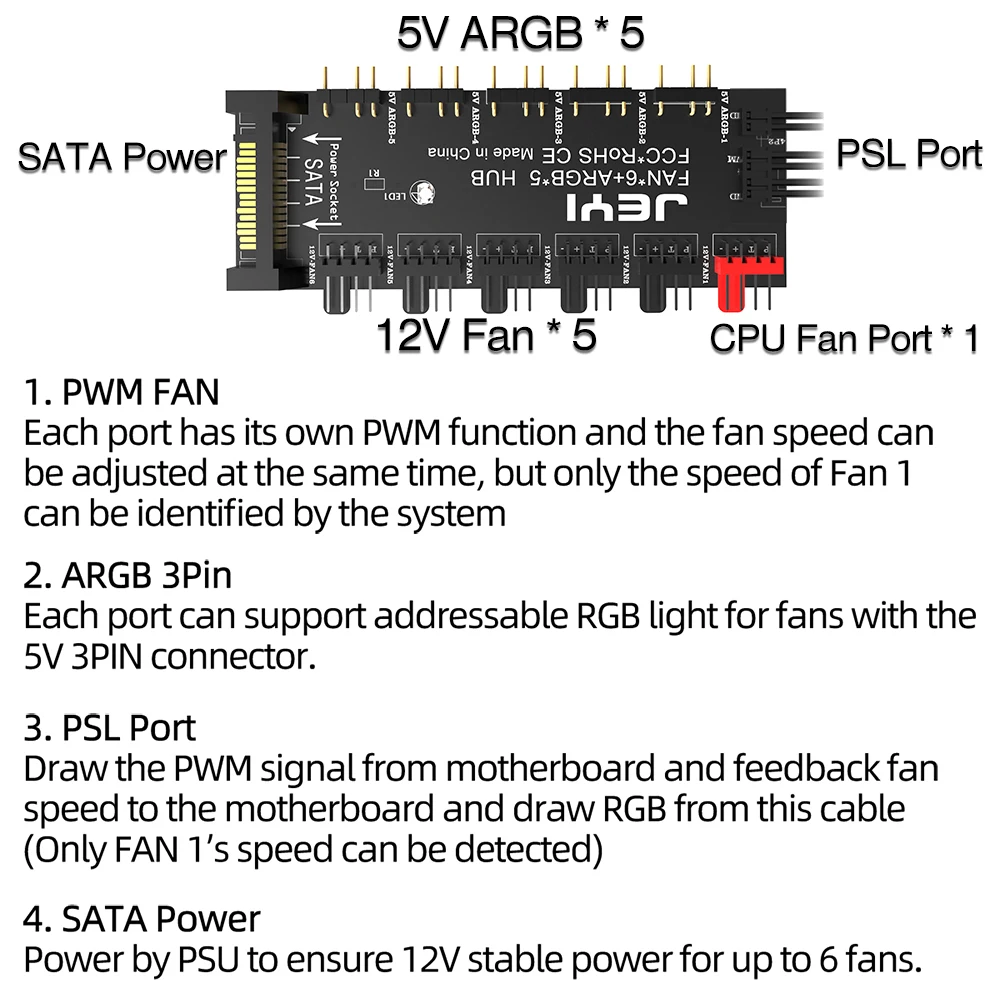

1. PWM FAN

Each port has its own PWM function and the fan speed can be adjusted at the same time, but only the speed of Fan 1 can be identified by the system

2. ARGB 3Pin

Each port can support addressable RGB light for fans with the 5V 3PIN connector.

3. PSL Port

Draw the PWM signal from motherboard and feedback fan speed to the motherboard and draw RGB from this cable(Only FAN 1?s speed can be detected)

4. SATA Power

Power by PSU to ensure 12V stable power for up to 6 fans.

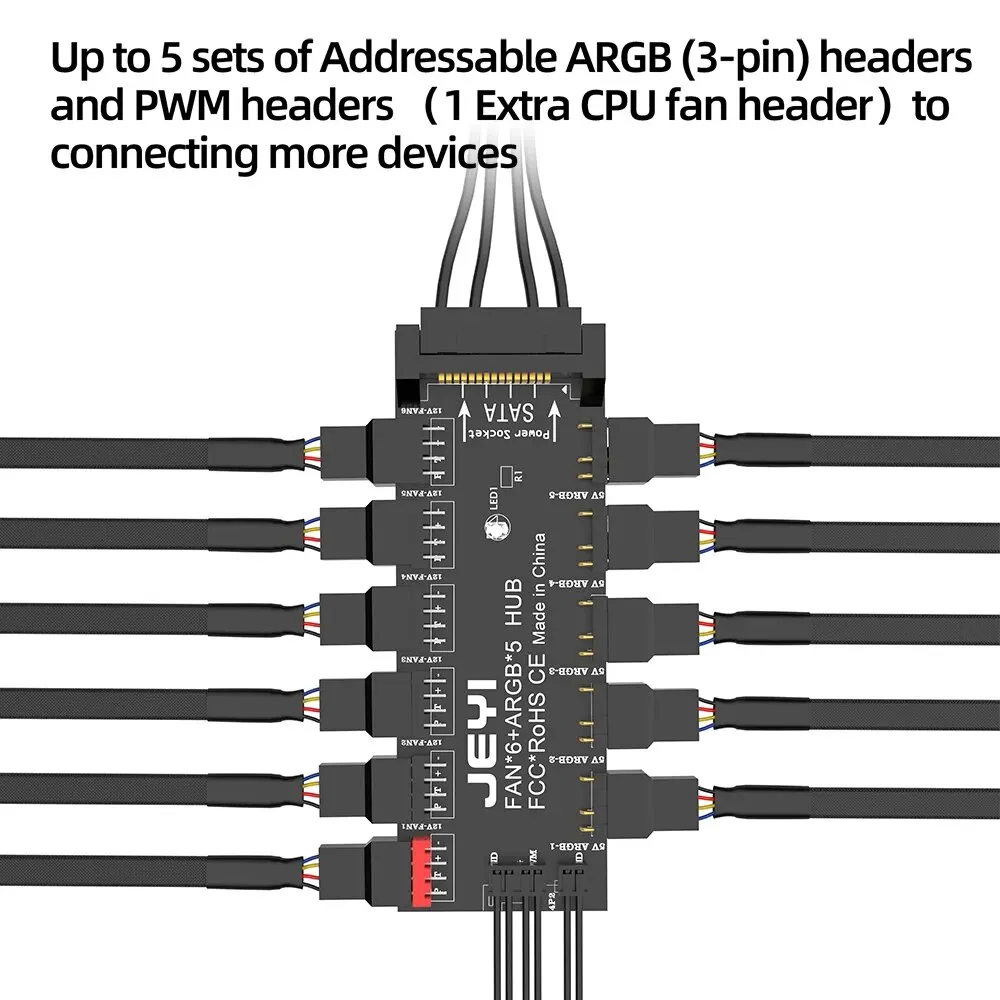

Up to 5 sets of Addressable ARGB (3-pin) headersand PWM headers ?1 Extra CPU fan header?to connecting more devices

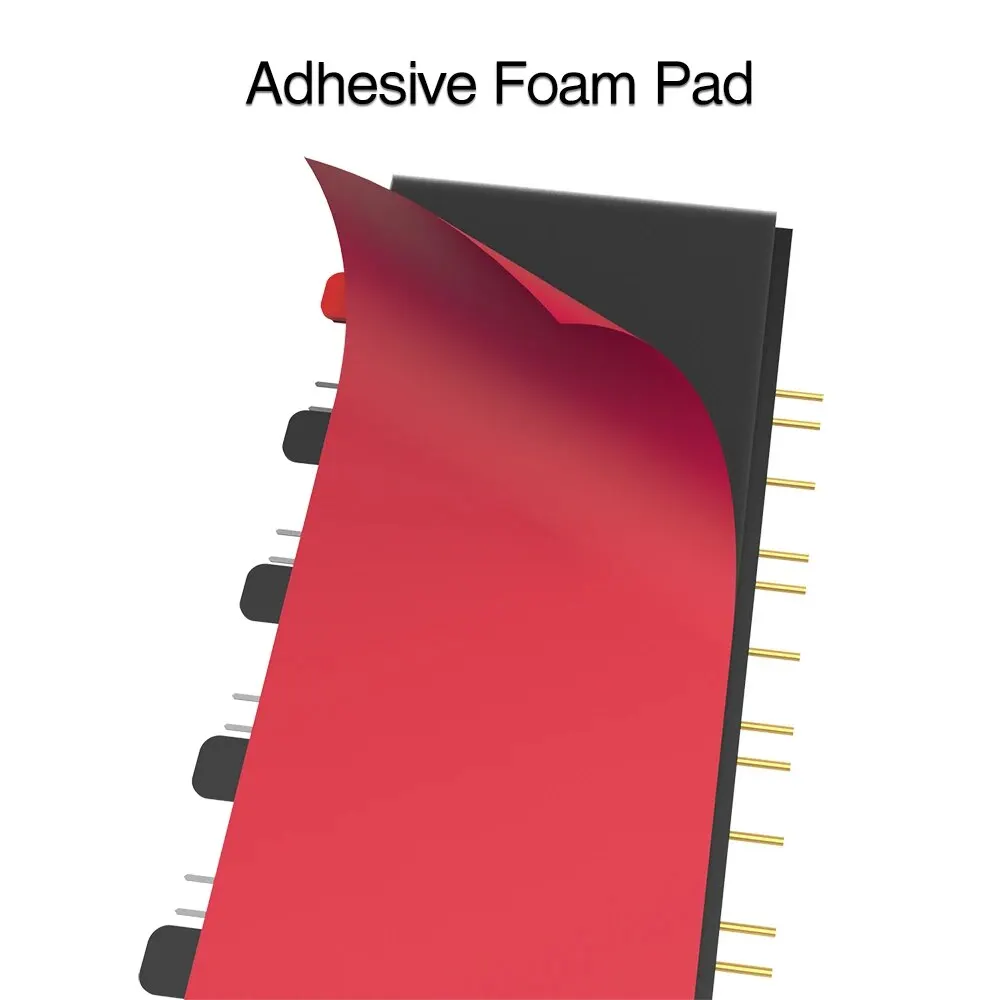

The back of the hub PCB board has adhesive foam, which is convenient for sticking in a flat place.

Specifications:

Type: Large 4D port power supply, SATA power supply (optional)

Line Interface: Small 4Pin PWM

Size: 70x45x1 5mm/2.76*1.77 * 0.59in

Notes:

1. Avoid speed measurement confusion, the computer freezes, and the multi-channel interface extended by one interface only shows the speed measurement of one of the fans!

2. This product is a PWM speed regulator. Its function is to expand a single motherboard's four-pin port into multiple ports for unified speed adjustment. If your fan is a 3-pin fan, you can also plug it in, but you cannot achieve PWM control speed!
