SPECIFICATIONS

Brand Name: NoEnName_Null,PHANTEKS

Certification: CE

Chip: KS6812 Symphony ARGB

Choice: yes

Features1: ARGB Support

Hign-concerned Chemical: None

LED: YES

Length1: 550MM

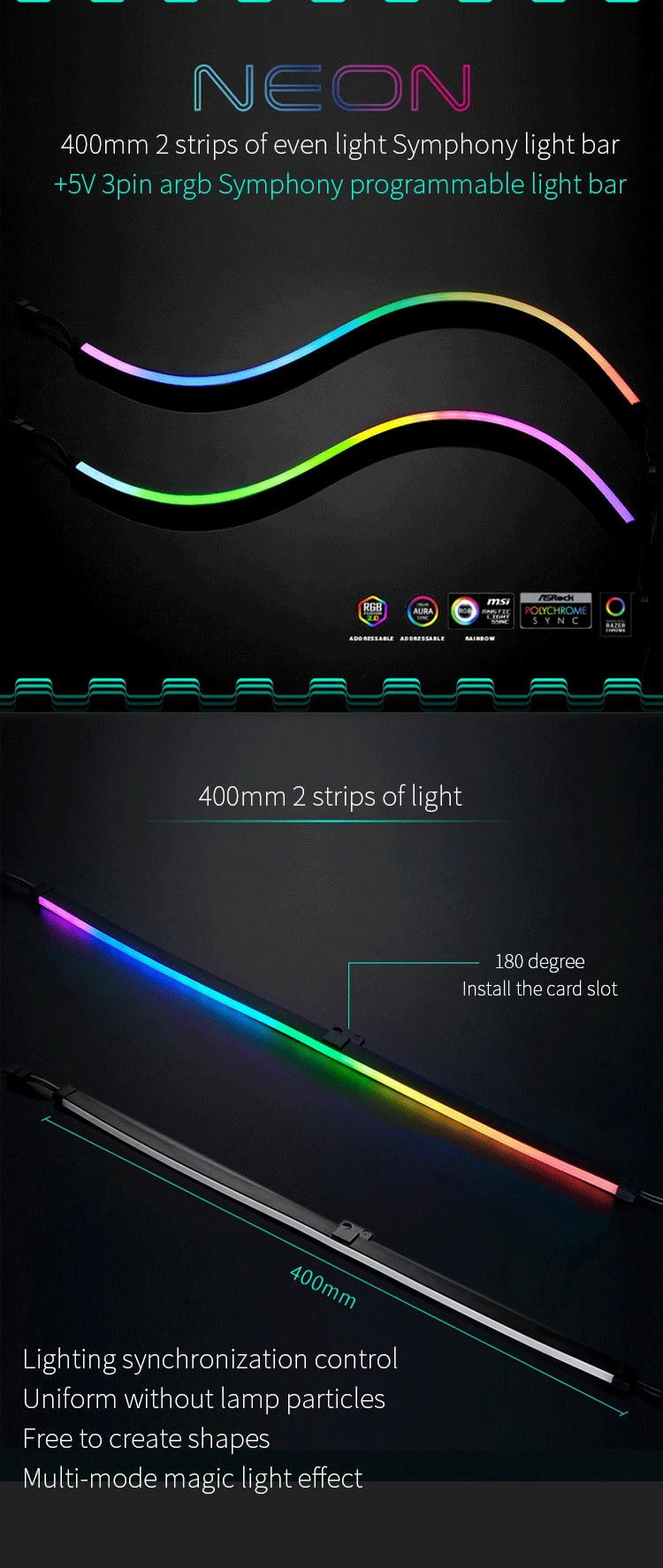

Length2: 400MM X 2

Length3: 1000MM

Model Number: Light Strip,M1 CMBO M5

Origin: Mainland China

Package: Yes

Port: 3PIN

Type: Sync Motherboard Cable

semi_Choice: yes

To ensure the normal operation of the LED strip, please consider the following suggestions:

?

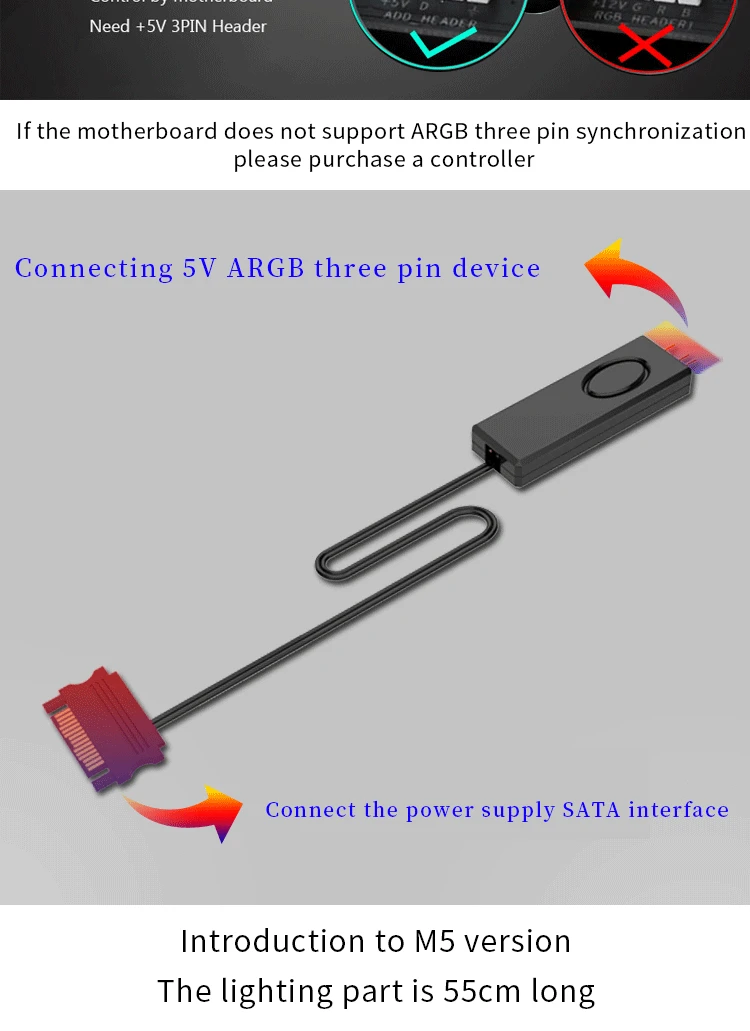

1. M5 and CMBO strips can be connected through the motherboard's 5V ARGB interface or a hub or controller with SATA/4PIN auxiliary power to maintain normal operation

2. M1 strips must be connected using a hub or controller with SATA/4PIN 12V auxiliary power to ensure that all LED strips are lit normally

Note: If the M1 strip is connected to the motherboard's 5V ARGB interface, some of the strips will not light up (this is not a product problem, but is caused by insufficient power supply. Connecting a 12V powered hub or controller can solve this problem)

3. If you connect the strips in series, please ensure that your power supply is sufficient. If you find that the strips do not light up during the series connection, please use a hub or controller with SATA/4PIN 12V auxiliary power

?

Following these suggestions will help you avoid the problem of LED strips flickering or not lighting up. If the problem persists, please contact us in time for more specific support and solutions. Thank you for your understanding and cooperation!

?
