Description

SPECIFICATIONS

120mm Fan Options: 5

140mm Fan Options: 0

Application: Desktop

Brand Name: POWER TRAIN

Case Size: L310*W195*H422mm

Case Weight: 6

Chassis Type: Desktops

Choice: yes

Dust Filters: Top

Expansion Slots: 4

Form Factor: MicroATX,Mini-ITX

Front Ports: USB3.0*1/USB2.0*1/HDAUDIC

Hign-concerned Chemical: None

Internal 2.5″ Drive Bays: 1

Internal 3.5″ Drive Bays: 1

Material: Tempered Glass,others

Max CPU Cooler Height: 160

Max GPU Length: 305

Max PSU Length: 150

Model Number: Illusionary Realm

Origin: Mainland China

Power Model: ATX

Power Supply Mounted: Bottom

RGB Support: NO RGB

Radiator Size: 240mm

Type: Horizontal

With Fan: No

With Power Supply: No

With Side Panel Window: YES

semi_Choice: yes

Product parameters

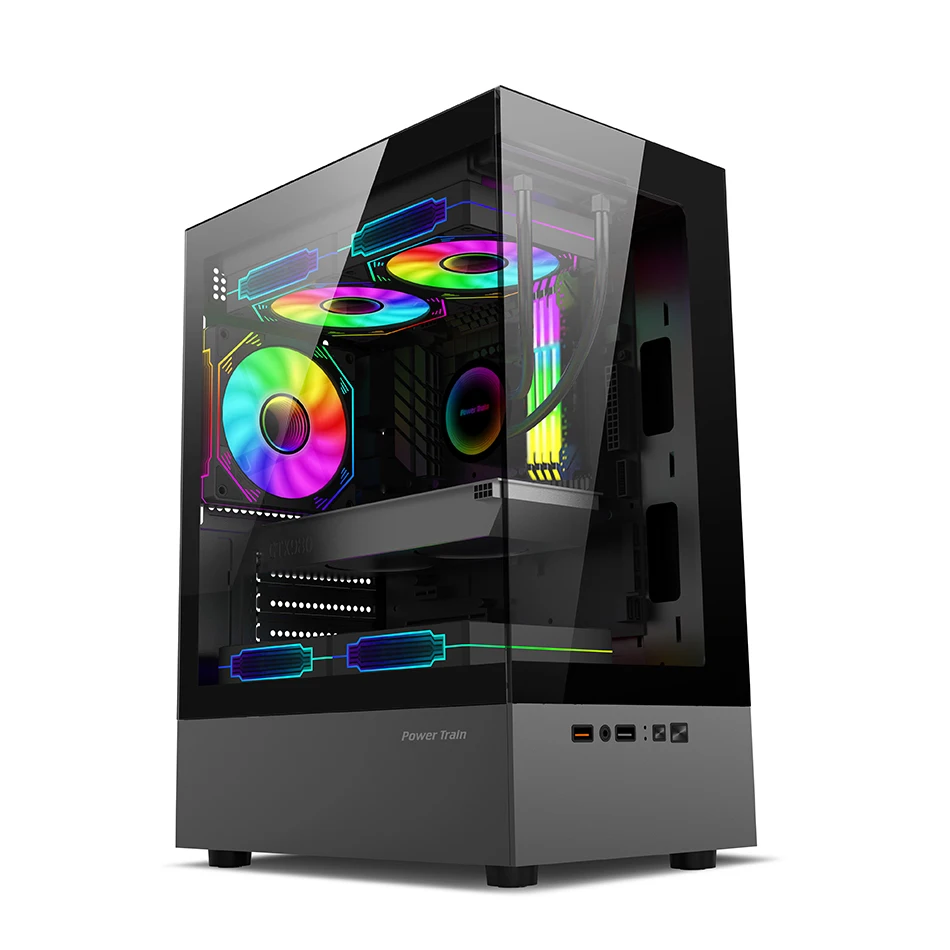

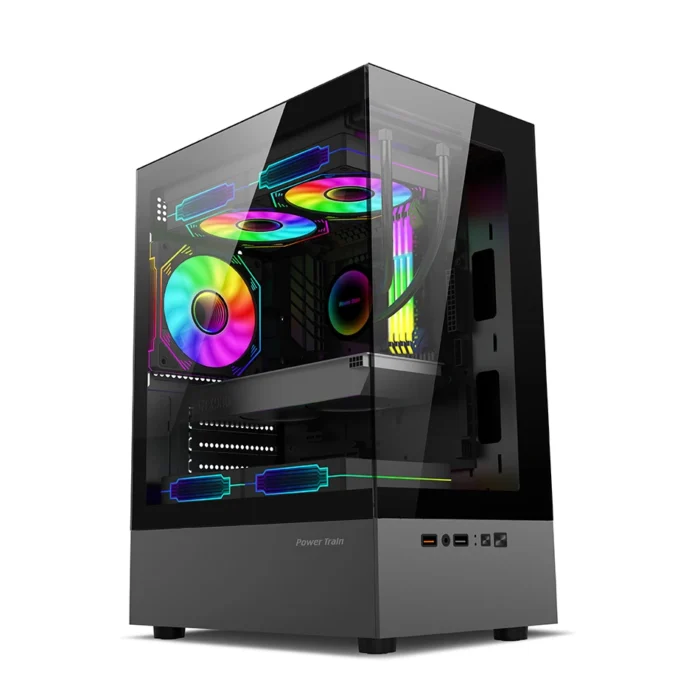

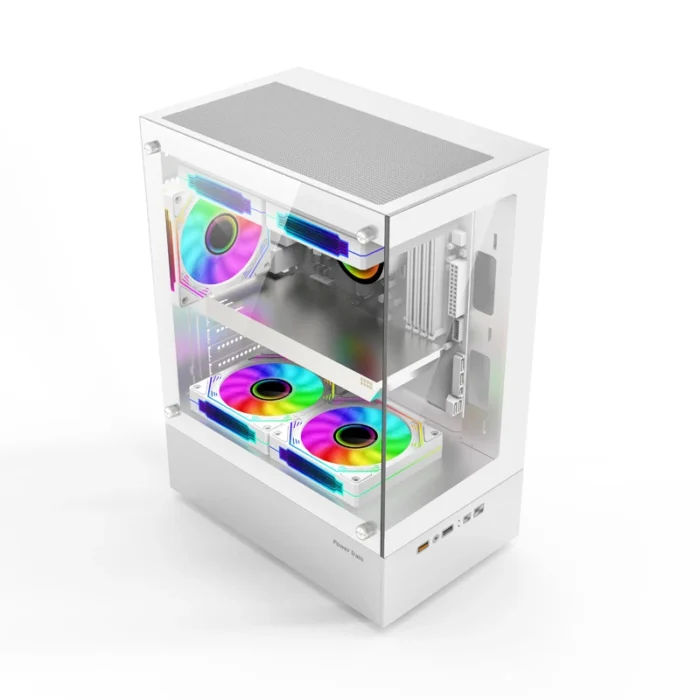

Product Name: Illusionary Realm

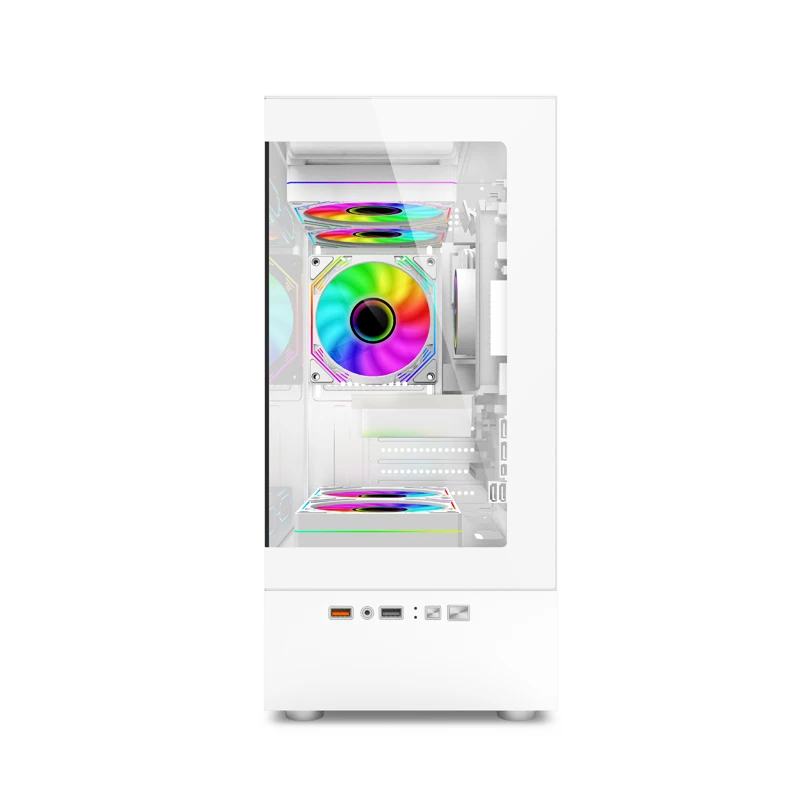

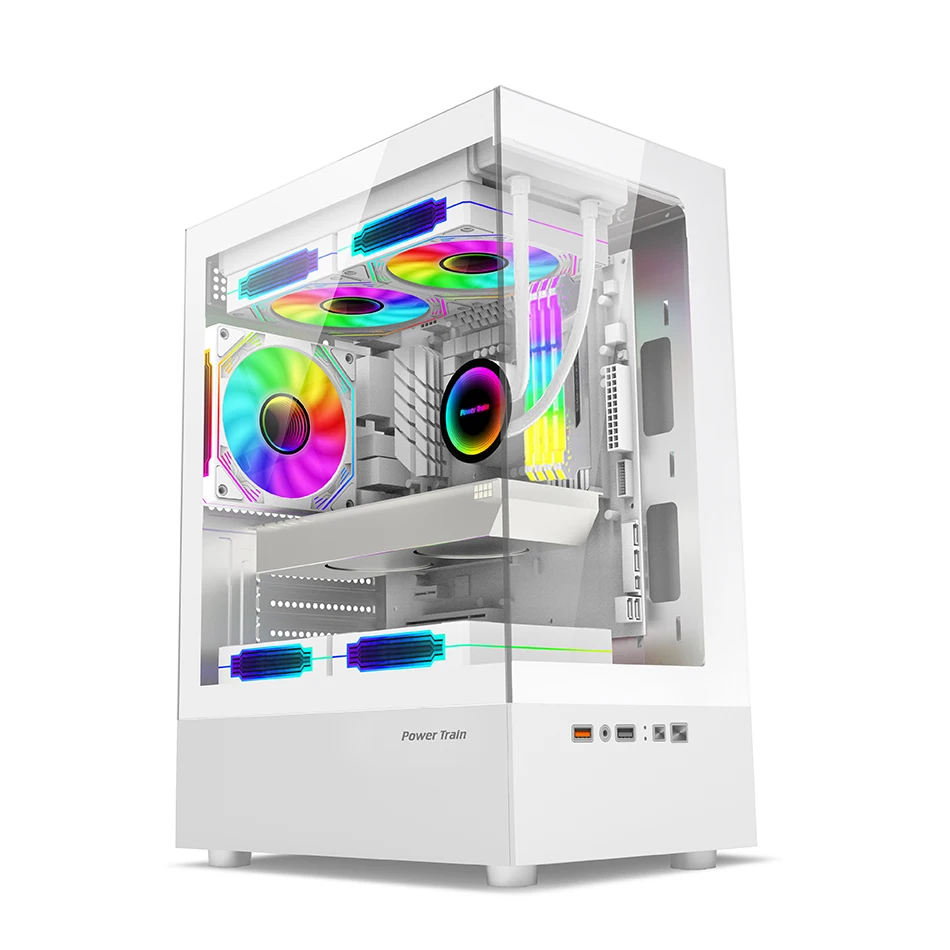

Case color: black/white

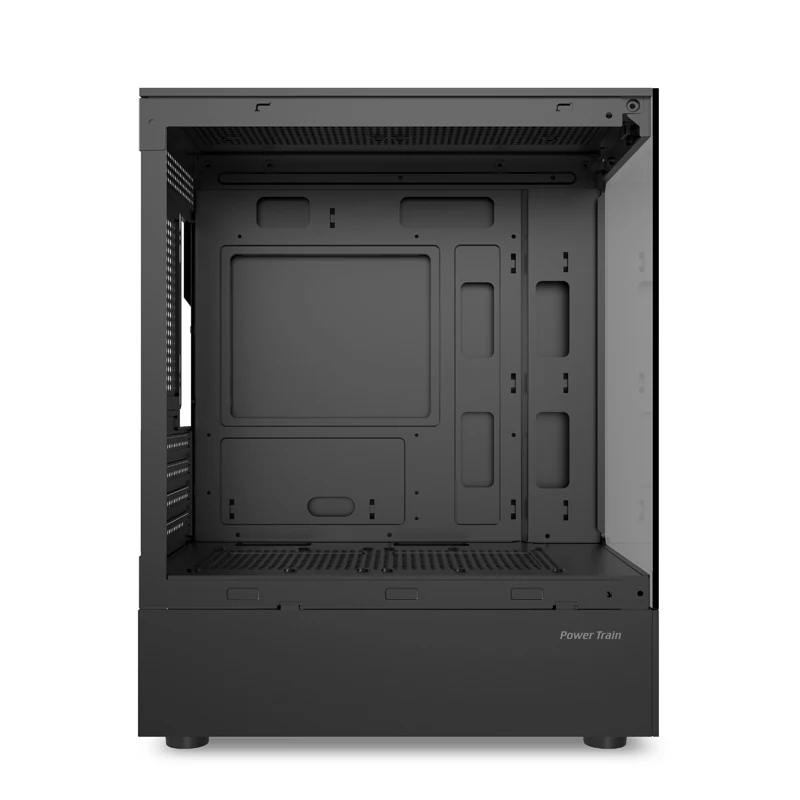

Applicable motherboard: M-ATX/mini ITX

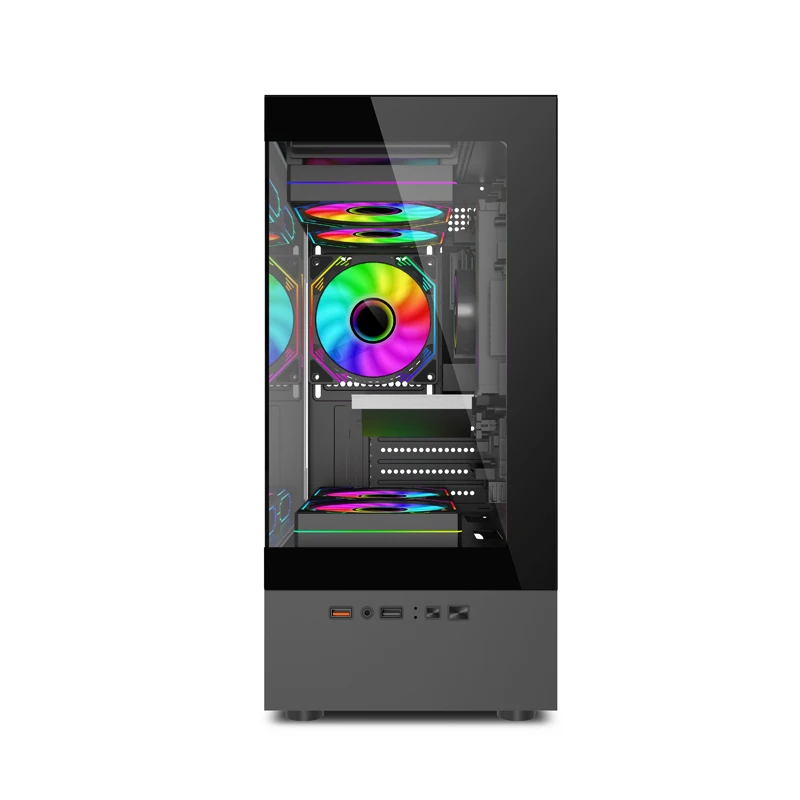

Panel interface: USB3.0 * 1/USB2.0 * 1/HDAUDIO
Expansion drive: 3.5 "HDD * 1, 2.5" SSD * 1
PCI slots: 4
Graphics card length limit: 305mm
CPU heat sink height limit: 160mm

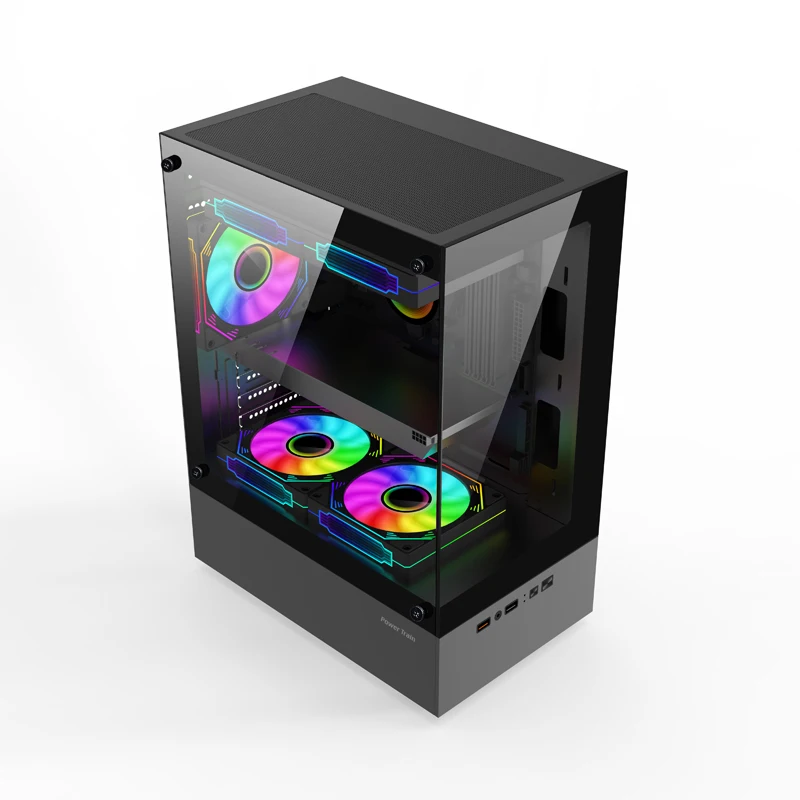

Cooling system
Top: 120mm * 2
Rear: 120mm * 1
Power compartment: 120mm * 2
Water cooling system
Top: 240mm water-cooled
Rear: 120mm water-cooled
Product size: L310 * W195 * H422mm
Material thickness: SPCC (baked paint) 0.5mm
