Description

SPECIFICATIONS

Average Life (hrs): 50000h

Brand Name: YSRSAI

Certification: CCC,ce,UL

Choice: yes

Hign-concerned Chemical: None

Is Smart Device: YES

Item Type: Strip

LED Chip Brand: sharp

LED Chip Model: WS2812B

Luminous Flux: 249-2000

Model Number: WS2812B

Occasion: LIVING ROOM

Origin: Mainland China

Power Generation: SWITCH

Power Source: DC

Specifications (light beads / m): 38led

Strip type: SMD

Voltage: 5V

Waterproof: No

Features:

1. Two sides emitting light

2. Magnetic suction adhesive installation

3. Neon lighting effect, smooth, without breakpoints, with a grainy feel

4. Upgrade 3IN1 connector

?

?

Parameter

Support for Asus/MSI/Gigabyte RGB Fusion 2.0 Version

Light source: 5050 SMD

IC Model: WS2812B

LED Quality: LED: 38 LEDs

View angle: Double side light

Material: aluminum alloy

Voltage: DC 5V

Max Power: 0.3W/LED

Waterproof: IP20 Non Waterproof

FPCB board color: Black

Working environment: -40 ? to+80 ?

Pin definition:+5V, D, N/A, GND

Red wire: 5V+/Green wire: Data/White wire: GND

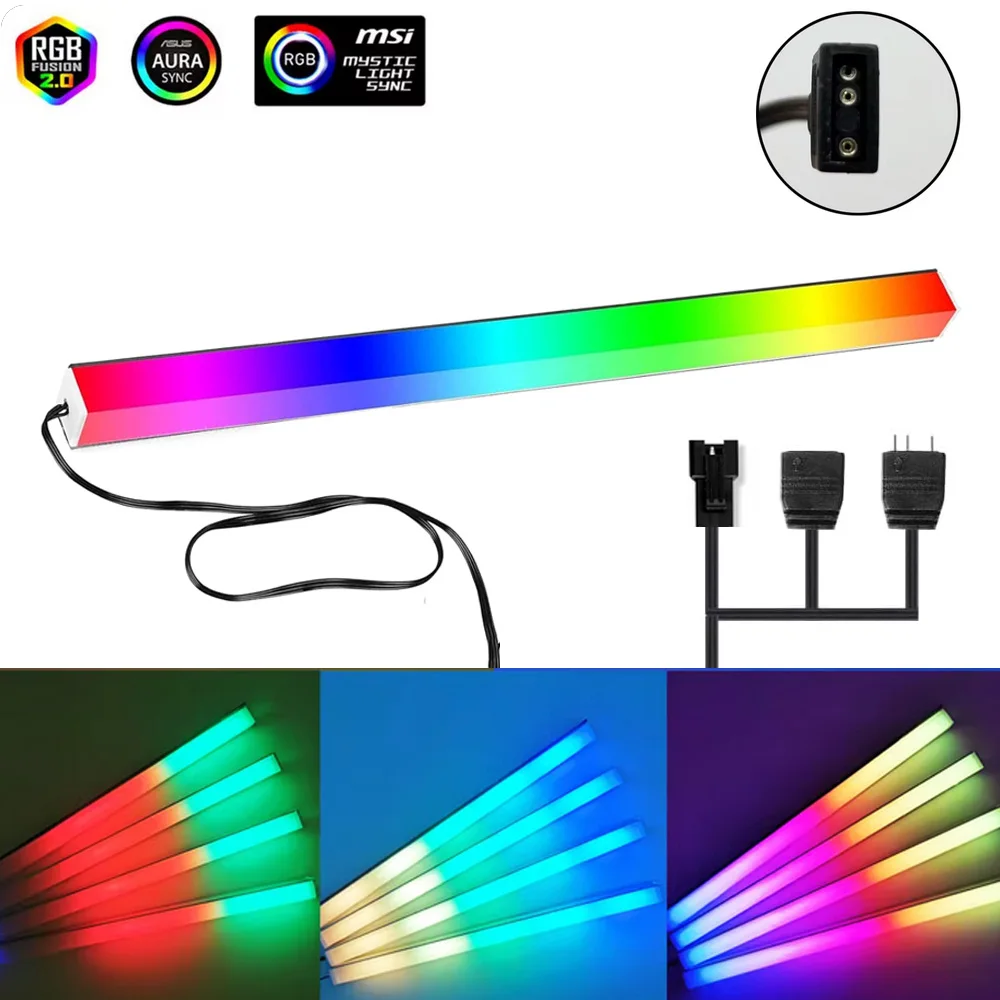

Length of LED strip: 30cm

Motherboard connect cable length: 50cm

Size: 30cm * 2cm * 2cm

?

?

?

Note:

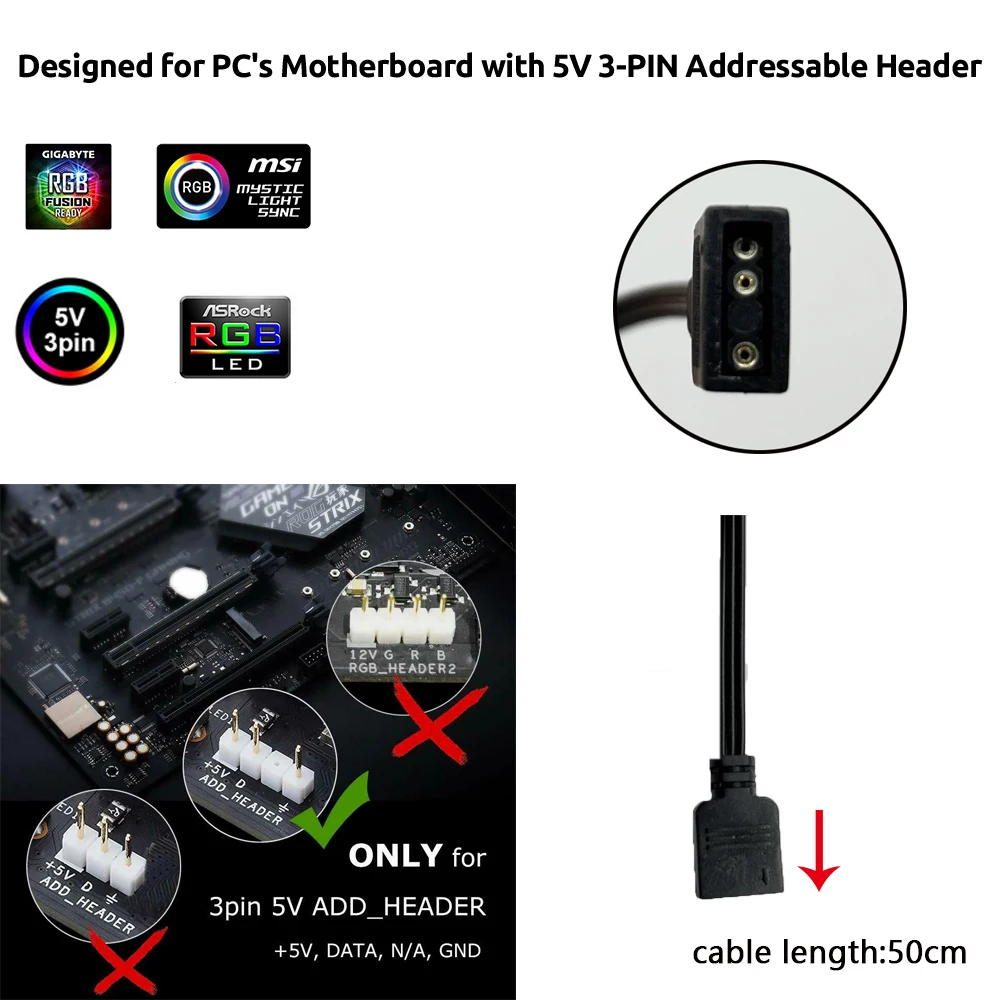

These addressable LED strips are designed for 3 pins+5V ADD_Header (+5V, DATA, N/A, GND)

Please do not connect it to 4pin 12V RGL_HEADER (12V, G, R, B) It will destroy whole LED strip

Support
for ASUS Aura SYNC, MSI Mystic Light SYNC/Gigabyte RGB Fusion 2.0
Version computer motherboard, for DIY game players, fit to decorate your
PC case or gaming computer case

Top quality LED chips
illuminated powerful bright multi dynamic lighting modes and compatible
flexible light as well as water proof solution will be a best choice for
your gaming hardware and spare time

Compatible with Asus
Aura, Gigabyte RGB Fusion, MSI Mystic Lighting, Music Sync etc.
extension cable included for DIY players to build up your perfect
desktop computer, so cool!

Plug and play easy installation Few
steps to complete the installation but needs more idea to place a good
position and get the best view effects, best DIY lighting project for
your desktop

Magnetic installation powerful PC case lighting
system Magnetic LED strip can be flawless fitted in your computer steel
case also it has double side tape for other material computer cases,
broadly compatibility

Perfectly controlled by software on your desktop computer such as aura sync

Length: LED with a 50cm external cable,

?

?

?

Package List:

1Pcs/2Pcs LED strip

?

?

?

?
